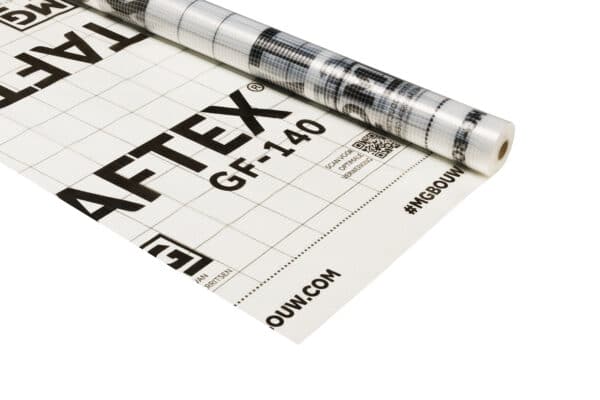

TAFTEX® GF-140
TAFTEX® GF-140 is a reinforced technical building membrane. With its strong UV stabilized reinforcement, TAFTEX® GF-140 maintains strength for an extremely long period of time. Microperforation and density of perforation provide water-repellent while maintaining breathability.
1.50 x 50 m Article No. 1415014000
Applications
TAFTEX® GF-140 is used as a breathable layer and water repellent membrane on the outside in facades. The unique microperforation allows moisture, in the form of vapour, to drain to the outside. TAFTEX® GF-140 is also used as a temporary glazing membrane for wind- and watertightening facade openings during construction.
Installation
TAFTEX® GF-140 is micro-perforated and should therefore be processed free of hard substrates. In facades with a soft substrate, for example mineral wool, TAFTEX® GF-140 may be applied directly to the soft substrate. TAFTEX® GF-140 should be applied in a shingle fashion. For overlaps, maintain a minimum of 150 mm and a maximum of 200 mm. Apply the membrane to the structure using staples or battens. Always apply TAFTEX® GF-140 legibly from the outside. Tape off staples, seams and overlaps with TAFTEX® membrane tape. Seal penetrations and connections wind and watertight with VASTR® Butyl tape or Tyvek® FlexWrap tape. For optimal water resistancce and durability, VASTR® Butyl tape should be applied under the batten.
Advantages
Watershed
Vapor permeable
Extremely high tensile and tear resistance
Chemical resistant
Translucent
Specifications
Weight 140 gr / m²
Fire class F
Water tightness W2
Water vapour resistance Sd 0.1 m
Water vapour transmission 211 gr / m² / day
Tensile strength machine direction initially 250N / 50 mm
Tensile strength cross direction initially 250N / 50 mm
Elongation machine direction at break 20%
Elongation cross direction at break 20%
Nail tear resistance machine direction initial length 170N
Nail tear resistance cross direction initially 180N
Temperature resistance -20°C / +80°C
Open construction phase 2 months
